کارت کپچر اکسترنال دوبل SDI/HDMI
امکان استفاده از دو ورودی HDMI , SDI به صورت همزمان برای رکورد و استریم در نرم افزارهای مختلف مانند obs , Vmix
امکان سوئیچ تصویر بین ورودی ها در obs,vmix
بدون نیاز به نصب درایور
کیفیت تلویزیونی (برودکست) بدون لگ

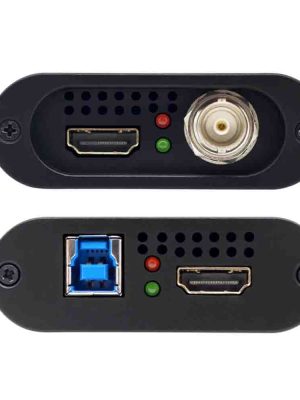

خروجی لوپ HDMI
*Work in Dual-Channel Simultaneously
*Up to 2 Channel 1080p30 Input
*Support Linux/Win11
*Support OBS/vMix/VJ/Zoom/VLC etc.
Interface | |
USB interface | USB3.0,360MB/s Bandwidth(Compatiable USB2.0) |
Input interface | 1xSDI,1xHDMI(Dual Channel Input) |
Output interface | Only 1xHDMI Loop(this loop output don’t support SDI in) |
Video input | 1080P50/60,1080I50/60,720P50/60,576P,576I,480P,480I |
Audio input | HDMI/SDI embedded |
Standard | |
HDMI input format | HDMI 1.4a compliance,Support 1080P/60HZ 8-bit,(YUV) SD/HD/3G-SDI,SMPTE-259/274/296/372/424/425/292 compliance |
Transmission speed | HDMI:165MHZ,SDI:1.485Gb/s,2.97Gb/ |
Video capture | UVC (USB video class) compliance |
Audio capture | UAC (USB audio class) compliance |
Output color space | YUV2 NV12 |
Recording Mode | Software Compression, Real-Time Mode |
General | |
Operation system | Support version x86 & x64 from Windows 7、8.1、10,Windows Server 2008 R2 Linux |
Compatible software | Windows Media Encoder, ,Adobe Flash Media Live Encoder, Real Producer Plus, VLC, Wire cast, AMCAP etc.… |
Compatible development interface | DirectShow (Windows), DirectSound (Windows) |
Update | Firmware can be updated by USB port |
Dimension | 69x90x24mm |
Box Dimension | 100x146x53mm |
Net/Gross Weight | 0.2/0.3kg |
Consumption | <= 3.5 W |
Working Temperature | 0-50 degree |
Storage temperature | -20-70 degree |
Storage humidity | 5%-90% |

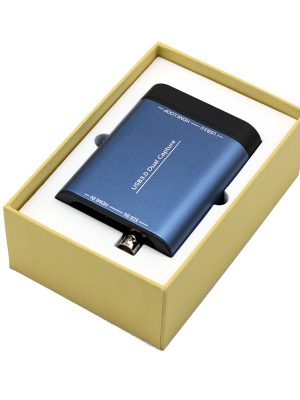

Included in package | *USB Grabber 1pcs *USB3.0 Cable 1pcs *User Manual 1pcs |
Note: Due to the limit of the USB3.0 Bus speed in chipset ,when you take HDMI and SDI input at the same time,it can only run 1080p30. |
